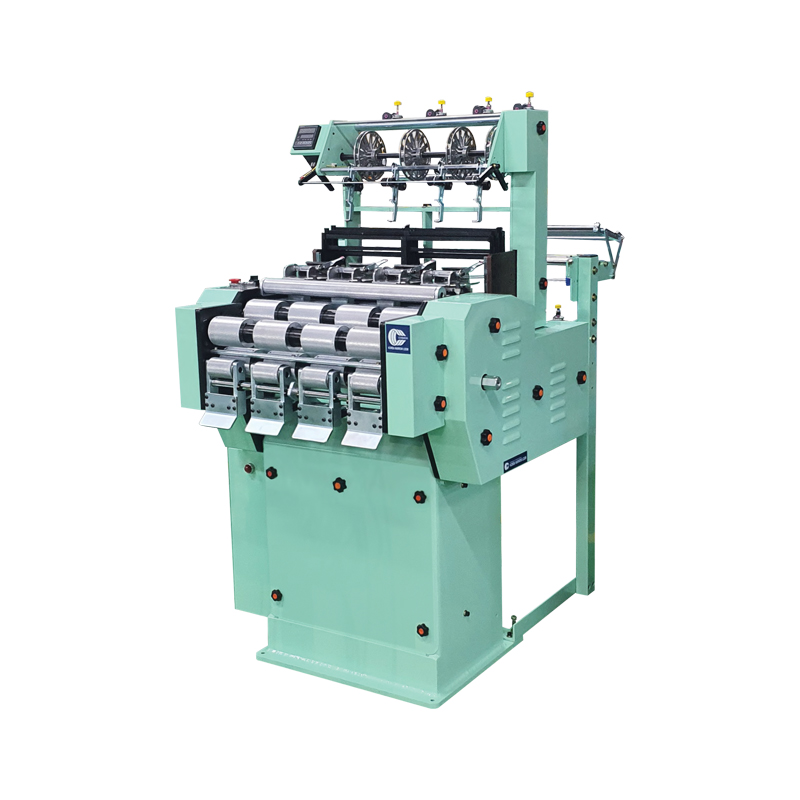

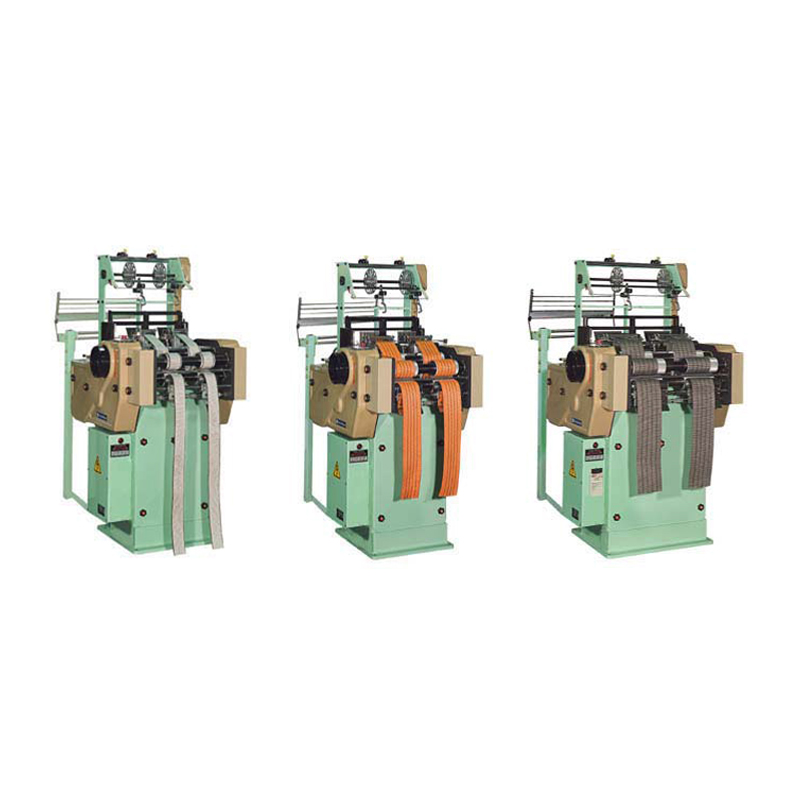

MFL Series Heavy Type Narrow Weaving Machine

MLF-2 and MFL-4

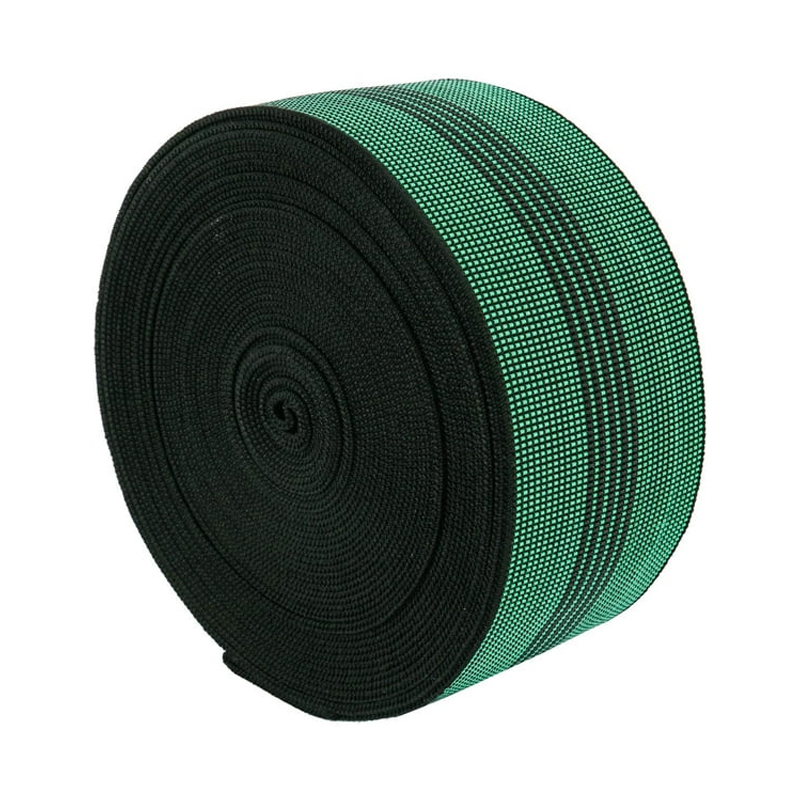

Heavy Duty Rope, Sofa, Furniture Elastic Webbing, Column, Conveyor Belt, Technical Textile Narrow Weaving Machines

The KORE NARROW LOOM heavy type narrow weaving machine is designed for the comfortable production of medium and high weight columns, military bandolas, cargo belts and belts. Draft, gear and drive parts of the machine are strengthened as heavy type.

To be able to produce products used in technical textiles with aramid, Kevlar, carbon yarn.

  • Long machine life with low vibration and vibration.
  • The durable machine structure is suitable for heavy work rope production.
  • Strong pulling and preventing rewinding with double drafting system.
  • Powerful comb device
  • Electronic jewelry feeding can work with any type of rope (Optional)

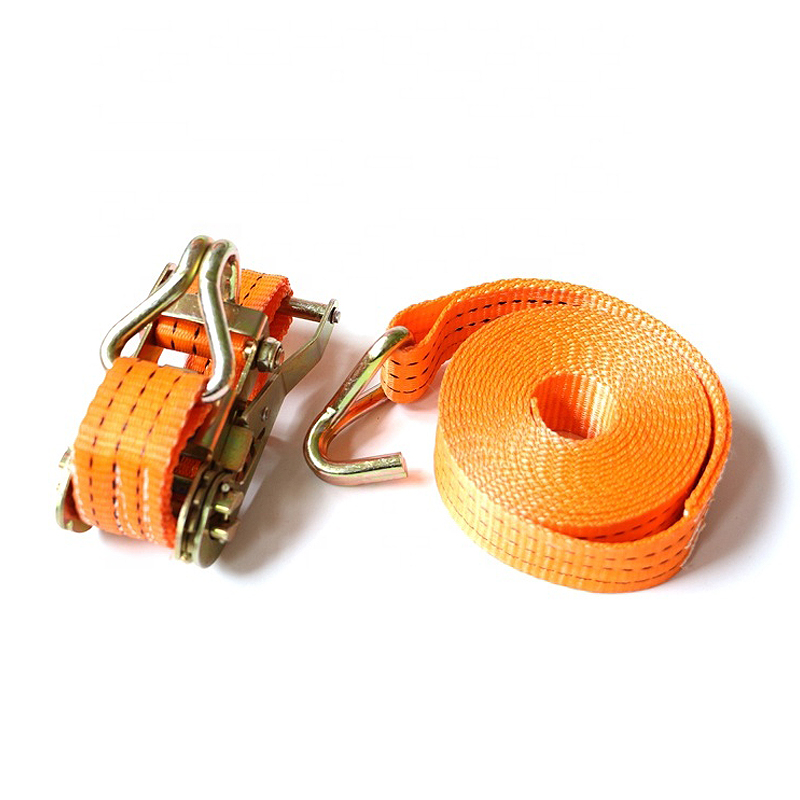

Conveyor belts

Military bandolier, belts

Safety belts
Spanzet
Safety rope

Model

Head Number

Weaving Width

Fabric Width

Number of Frames

Pattern Chain

Motor (HP)

Speed (r.p.m.)

MFL-2/50CB2

2

50mm

45mm

8

1:8-48

1.5

700-900

MFL-2/75CB2

2

75mm

70mm

8

1:8-48

1.5

700-900

MFL-2/100CB2

2

100mm

90mm

8

1:8-48

1.5

500-800

MFL-2/125CB2

2

125mm

100mm

8

1:8-48

1.5

500-800

MFL-2/150CB2

2

150mm

125mm

8

1:8-48

1.5

300-500

MFL-2/175CB2

2

175mm

150mm

8

1:8-48

1.5

300-500

MFL-4/50CB2

4

50mm

45mm

8

1:8-48

1.5

700-900

MFL-4/75CB2

4

75mm

50mm

8

1:8-48

1.5

700-900
